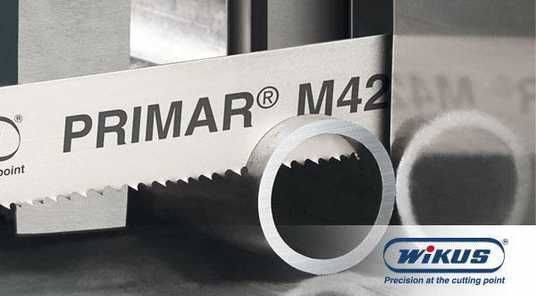

Metal Bandsaw Blade WIKUS Primar 34-1.1-4950
Introducing the WIKUS Primar 34-1.1-4950 metal bandsaw blade – a professional tool from the global leader WIKUS, designed for the most demanding metal cutting tasks. This bimetal blade guarantees exceptional precision, high productivity, and durability, making it an ideal choice for industrial enterprises.
With optimal dimensions (length 4950 mm, width 34 mm, thickness 1.1 mm), this blade is perfectly suited for use on automatic two-column bandsaw machines, particularly:
These high-performance machines, which are a benchmark of efficiency and reliability in metalworking, are also available for purchase in our assortment on the website. By choosing the WIKUS Primar 34-1.1-4950, you get the ideal combination of blade and equipment to achieve maximum productivity and impeccable cut quality.
Advantages and Features of WIKUS Primar 34-1.1-4950 Bandsaw Blade:
Key Features:
- Bimetal Construction: The blade tooth is made from high-quality M42 high-speed steel, ensuring a hardness of 69 Rockwell (HRC) units. This guarantees extraordinary wear resistance, sharpness, and the ability to work effectively with the hardest metals.
- Durable Body: The blade body is made from high-strength spring steel. This provides the blade with flexibility, elasticity, and high resistance to fatigue, significantly extending its service life even during intensive and prolonged operation.
- Variable Tooth Pitch: WIKUS Primar blades exclusively feature a variable tooth pitch. This innovative solution significantly reduces vibrations during cutting, improves the quality of the cut surface, and increases overall processing speed, as different tooth groups simultaneously contact the material, ensuring smooth and effective chip removal.
- High Cutting Precision: Optimal tooth geometry and precision manufacturing guarantee a clean, accurate, and fast cut, which is critically important for high-quality metalworking.
- Durability and Reliability: The use of premium materials and advanced WIKUS manufacturing technologies ensures an exceptionally long blade life, allowing you to significantly reduce your operating costs.
- Wide Range of Applications: This blade is ideally suited for cutting a wide range of metals: from carbon steels and non-ferrous alloys to stainless steel and cast iron, as well as for cutting profiles and solid workpieces.
Available Tooth Pitches (TPI - Teeth Per Inch) and Recommended Cutting Diameters/Sizes:
To ensure optimal cutting of various types of materials and profiles, WIKUS Primar 34-1.1-4950 bandsaw blades are available in all variable tooth pitch variations. Choose the appropriate tooth pitch depending on the size and type of workpiece, following the rule "at least 3 teeth in contact with the material":
| Tooth Pitch (TPI) |
Recommended Application (General) |
Optimal Diameter for Solid Materials (mm) |
Optimal Diameter for Tubes / Profiles (mm, with wall thickness) |
| 2/3 |
For large solid workpieces, thick-walled profiles (from 500 mm). |
250-600+ |
500-1000 mm (wall thickness 15-200 mm) |
| 3/4 |
Universal pitch for medium-sized solid materials (from 80 mm) and thick-walled pipes/profiles (from 300 mm). |
80-150 |
300-1000 mm (wall thickness 15-50 mm) |
| 4/6 |
For thin-walled pipes and profiles (200-500 mm), solid materials (30-80 mm), bundle cutting. |
30-80 |
200-500 mm (wall thickness 10-15 mm) |
| 5/8 |
For small to medium solid materials (35-80 mm) and thin-walled pipes/profiles (120-300 mm), bundle cutting. |
35-80 |
120-300 mm (wall thickness 5-10 mm) |
| 6/10 |
For small to medium solid materials (20-50 mm) and thin-walled pipes/profiles (80-200 mm). |
20-50 |
80-200 mm (wall thickness 4-6 mm) |
| 8/12 |
For small solid materials (10-30 mm) and thin-walled pipes/profiles (40-150 mm). |
10-30 |
40-150 mm (wall thickness 3-4 mm) |
The availability of all tooth pitches allows you to choose the ideal blade for any task, ensuring maximum efficiency and cutting quality. It is important to remember that during metal cutting, at least 3 saw teeth should be in contact with the material simultaneously; fewer teeth can lead to damage or breakage of the blade.
Technical Specifications of WIKUS Primar 34-1.1-4950 Blade
| Characteristic |
Value |
| Blade Length |
4950 mm |
| Blade Width |
34 mm |
| Blade Thickness |
1.1 mm |
| Tooth Material |
High-speed steel M42 |
| Tooth Hardness |
69 HRC (Rockwell units) |
| Blade Body Material |
Spring steel |
| Tooth Pitch |
Variable (2/3, 3/4, 4/6, 5/8, 6/10, 8/12 – all available) |
| Blade Type |
Bimetal |
| Manufacturer |
WIKUS (Germany) |
| Purpose |
Metal cutting (various alloys and profiles) |
Package Contents and Additional Options:
The standard package includes one WIKUS Primar 34-1.1-4950 bandsaw blade welded into a loop, with your chosen tooth pitch.
For optimal performance and expanded capabilities, we recommend considering:
- Spare Blades: Always have blades with different tooth pitches available for various material types and tasks to ensure uninterrupted production.
- Coolant/Lubrication Systems: To extend blade life and improve cut quality, if your machine does not have such a system, or for its upgrade.
- Expert Consultation: Our specialists will help you choose the optimal tooth pitch and configure your machine for maximum efficiency and material savings.
Choose quality and reliability from WIKUS! Order the WIKUS Primar 34-1.1-4950 bandsaw blade today and ensure impeccable cutting quality in your production. All tooth pitches are in stock!
