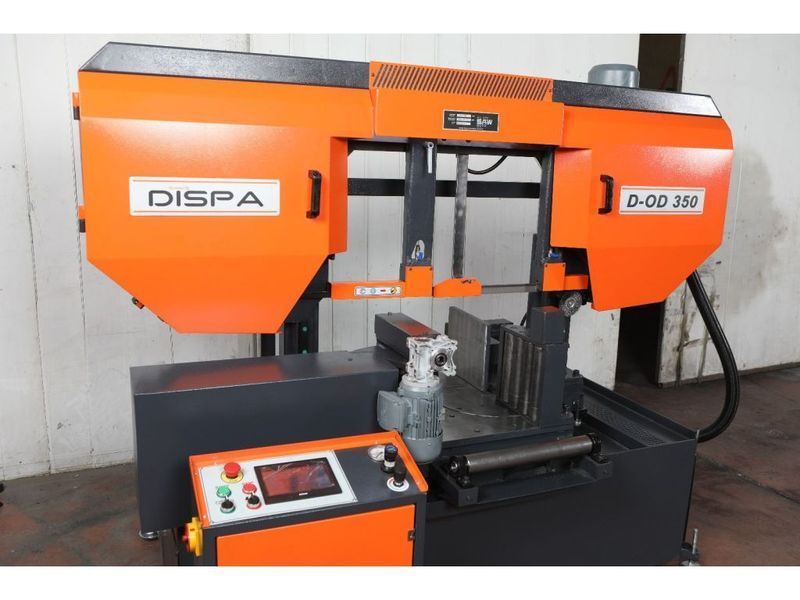

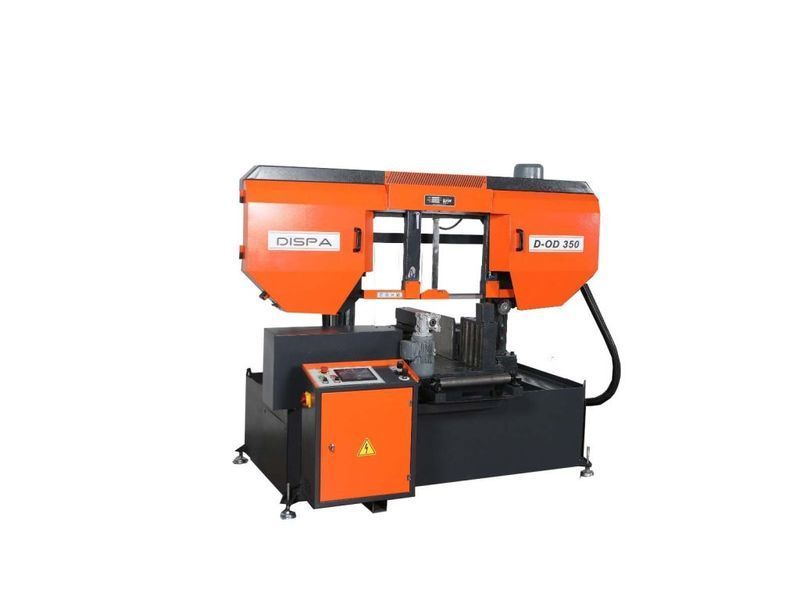

Automatic Two-Column Bandsaw Machine DISPA MAKINA D-OD 350
The automatic two-column bandsaw machine DISPA MAKINA D-OD 350 is a high-tech solution for precise and high-performance cutting of metal workpieces. This model is designed for intensive operation in serial and mass production environments where impeccable cut quality and maximum automation of the process are required.
DISPA MAKINA is a leading Turkish manufacturer specializing in reliable and innovative metalworking equipment for over 30 years. The brand's products are known for their durability, advanced technologies, and compliance with international quality standards, confirmed by CE and ISO 9001 certificates.
Advantages and Features of DISPA MAKINA D-OD 350
The D-OD 350 model stands out with its massive and rigid two-column construction, made from thick-walled metal. This ensures exceptional stability, minimizes vibrations during operation, and guarantees high cutting accuracy even when processing large and heavy workpieces.
- Optimal Power: The main motor with a power of 2.2 kW ensures efficient and stable operation with various types of metals.
- High Cutting Precision: The saw can cut round parts up to 360 mm, square parts up to 350x350 mm, and rectangular parts up to 350x450 mm at a 90° angle. Cutting at a 45° angle is also available (round – 200 mm, square – 200x200 mm, rectangular – 200x450 mm).
- Adaptive Speed: Smooth regulation of the cutting blade speed in the range of 0-90 m/min allows precise adjustment of parameters for specific materials and cutting requirements.
- Efficient Automation: The machine is equipped with an automatic screw conveyor for chip removal (with a 0.44 kW motor), ensuring continuous operation and a clean working area.
- Reliable Hydraulic Power: A hydraulic station with a 30 L capacity and a 40 L hydro-accumulator ensure stable operation of all hydraulic systems, including workpiece clamping. The hydraulic pump motor power is 0.75 kW.
- High-Quality Blade: Uses a cutting blade with dimensions of 4950x34x1.1 mm, which ensures efficient and long-lasting cutting.
- Optimal Working Height: A comfortable working height of 650 mm ensures ergonomics and operator comfort.
- Effective Cooling System: The coolant system (ZOR) motor with a power of 0.09 kW ensures a constant supply of lubricating and cooling fluid, which increases blade life and improves cut quality.
- Compact Dimensions: With a weight of 1600 kg, the overall dimensions of 2400x1300x1800 mm allow the saw to be integrated into various production facilities.
Technical Specifications of DISPA MAKINA D-OD 350
| Characteristic |
Value |
| Main Motor Power |
2.2 kW |
| Weight |
1600 kg |
| Coolant System (ZOR) Motor Power |
0.09 kW |
| Cutting Blade Size |
4950x34x1.1 mm |
| Cutting Blade Speed |
0-90 m/min |
| Working Height |
650 mm |
| Overall Dimensions |
2400x1300x1800 mm |
| Round Part Cut at 90° |
360 mm |
| Square Part Cut at 90° |
350x350 mm |
| Rectangular Part Cut at 90° |
350x450 mm |
| Round Part Cut at 45° |
200 mm |
| Square Part Cut at 45° |
200x200 mm |
| Rectangular Part Cut at 45° |
200x450 mm |
| Conveyor Motor Power |
0.44 kW |
| Hydraulic Station Capacity |
30 L |
| Hydro-accumulator Capacity |
40 L |
| Hydraulic Pump Motor Power |
0.75 kW |
Standard Equipment of Automatic Two-Column Bandsaw Machine DISPA MAKINA D-OD 350
The standard delivery set includes all necessary components for starting productive work:
- Main unit of the automatic two-column bandsaw machine DISPA MAKINA D-OD 350
- Integrated CNC control system
- Automatic screw conveyor for chip removal
- Coolant system (ZOR) with motor
- Hydraulic workpiece clamping system
- One high-quality bandsaw blade 4950x34x1.1 mm
- Set of tools for setup and maintenance
- Technical documentation and user manual (in Ukrainian)
Optional Equipment and Services
To expand functional capabilities and optimize your enterprise's operations, we offer the following options and services:
- Additional bandsaw blades of various types and toothings for specific materials
- Roller conveyors (feeding and discharge) for working with long workpieces
- Coolant (ZOR) filtration and purification systems to extend its lifespan
- Laser cutting line indicator for even more precise positioning
- CNC system upgrades for integration with production systems
- Professional operator training on-site or at our service center
- Extended warranty and agreements for regular maintenance
- Supply of spare parts and consumables
Choose the automatic two-column bandsaw machine DISPA MAKINA D-OD 350 for impeccable precision and high productivity! Contact our specialists for consultation and a personalized offer.
