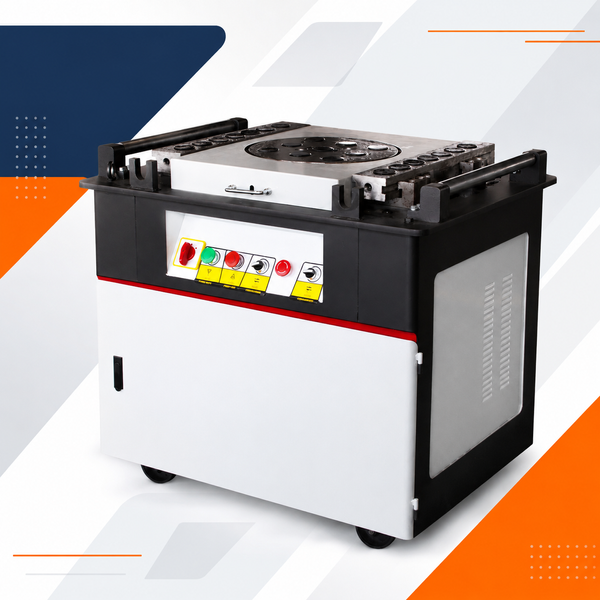

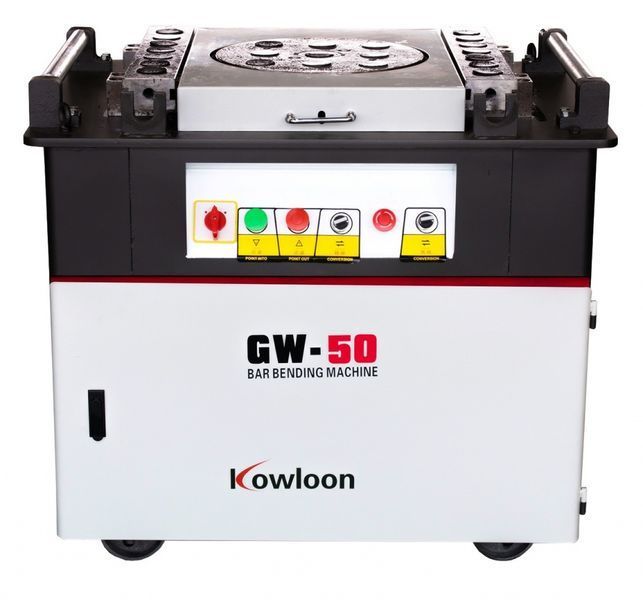

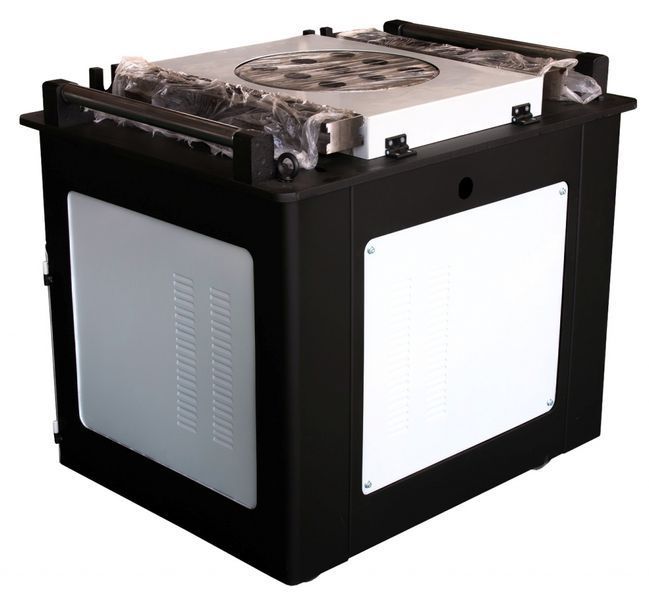

GW-50 Rebar Bending Machine
GW-50 rebar bending machine is a powerful professional machine designed for bending smooth and ribbed reinforcement bars at construction sites, metal fabrication workshops, reinforced concrete production plants, and industrial facilities. The model is equipped with a 4 kW motor with built-in brake, operates from a 380 V power supply, and allows bending angles from 0 to 180°.
The GW-50 is suitable for processing smooth reinforcement bars up to 50 mm and ribbed reinforcement bars up to 38 mm. This is a reliable solution for companies that require stable performance, precise bending angles, and long service life.
4–50 mmsmooth rebar AІ
4–38 mmribbed rebar AIII
4 kWmotor with brake
0–180°bending angle
423 kgheavy-duty construction
Main Advantages of the GW-50
- High power: the 4 kW motor ensures stable operation with large-diameter reinforcement bars.
- Processing rebar up to 50 mm: suitable for heavy-duty industrial and construction tasks.
- Built-in motor brake: prevents shaft rotation by inertia and improves stopping accuracy.
- Manual and automatic operation modes: the operator can choose the most convenient working mode.
- Foot pedal control: start and reverse functions can be duplicated on a foot pedal for convenient serial bending.
- Complete set of pins, rollers, and bushings: allows working with different rebar diameters and bending radii.
- Operation in harsh conditions: designed for ambient temperatures from -20°C to +35°C.
Machine Application
The GW-50 rebar bending machine is used for bending reinforcement bars in the production of reinforcement cages, stirrups, embedded parts, reinforced concrete structures, and metal components. The equipment is ideal for construction companies, concrete plants, reinforcement workshops, and metalworking enterprises.
Functional Features
Manual and automatic operation modes. In manual mode, the operator controls the bending cycle using buttons or a foot pedal. In automatic mode, the working disc automatically returns to its initial position, which is convenient for repetitive operations.
Motor with built-in brake. The braking system stops the shaft without unwanted inertia rotation, improving bending accuracy and operational safety.

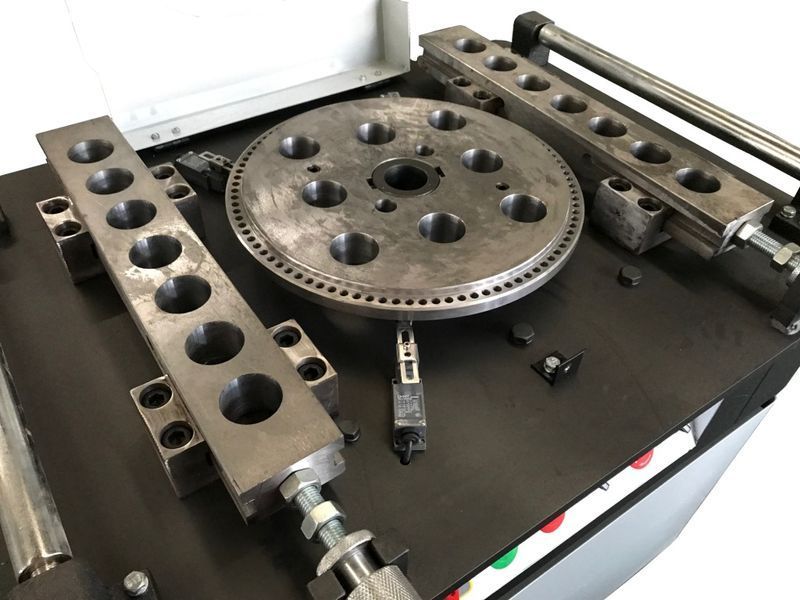

380 mm working disc. The massive disc provides stable force transmission to the rebar and allows the use of pins, rollers, and bushings of various diameters.
Main shaft rotation speed 7–10 rpm. This speed ensures a smooth and controlled bending process, especially important when working with thick ribbed reinforcement bars.
Technical Specifications
| Parameter |
Value |
| Model |
GW-50 |
| Max. smooth rebar diameter (Class AI) |
4–50 mm |
| Max. ribbed rebar diameter (Class AIII) |
4–38 mm |
| Working disc diameter |
380 mm |
| Control system |
Manual / Automatic |
| Motor power |
4 kW with built-in brake |
| Motor speed |
1440 rpm |
| Reducer lubrication |
Lithol-24, 8.0–11.0 l/kg |
| Voltage |
380 V |
| Bending angle |
0–180° |
| Bending pin diameter |
25–120 mm |
| Main shaft rotation speed during bending |
7–10 rpm |
| Dimensions |
1090 x 870 x 1000 mm |
| Weight |
423 kg |
| Operating temperature |
-20°C to +35°C |
| Warranty |
12 months |
Standard Equipment
- GW-50 rebar bending machine
- Working disc
- Set of bending pins
- 4 bushings: 70 mm, 80 mm, 90 mm, 120 mm
- 7 rollers with diameters from 25 mm to 50 mm
- Foot pedal control (depending on package configuration)
- User manual and technical documentation
Additional Equipment and Consumables
- Additional rollers and bushings for different bending tasks
- Replacement pins for various rebar diameters
- Reducer grease: Lithol-24
- Foot pedal for convenient operator control
- Service maintenance and technical consultation
Who Is the GW-50 Suitable For?
The GW-50 is an excellent choice for construction companies, reinforced concrete manufacturers, reinforcement workshops, and metal fabrication enterprises that regularly process large-diameter rebar. Thanks to its 4 kW motor, 423 kg heavy-duty frame, and ability to bend reinforcement bars up to 50 mm, this machine is suitable for intensive industrial use.
Warranty, Consultation, and Delivery
The GW-50 rebar bending machine is supplied with a 12-month warranty. Hoper Trade specialists will help you choose the right equipment, consumables, and accessories, as well as arrange delivery throughout Ukraine.
