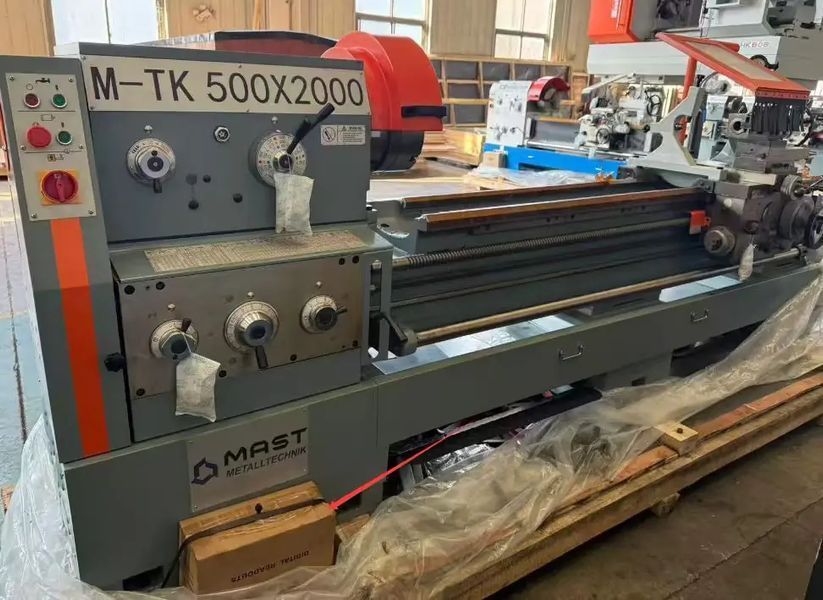

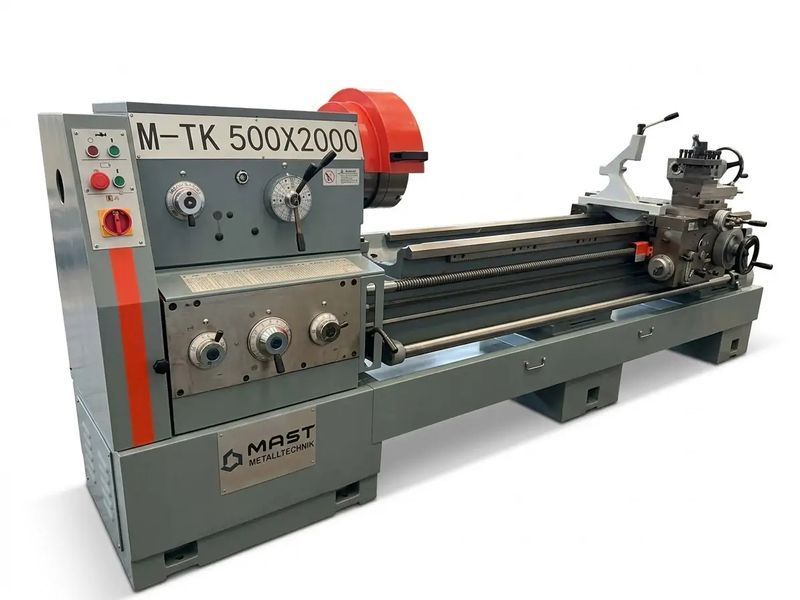

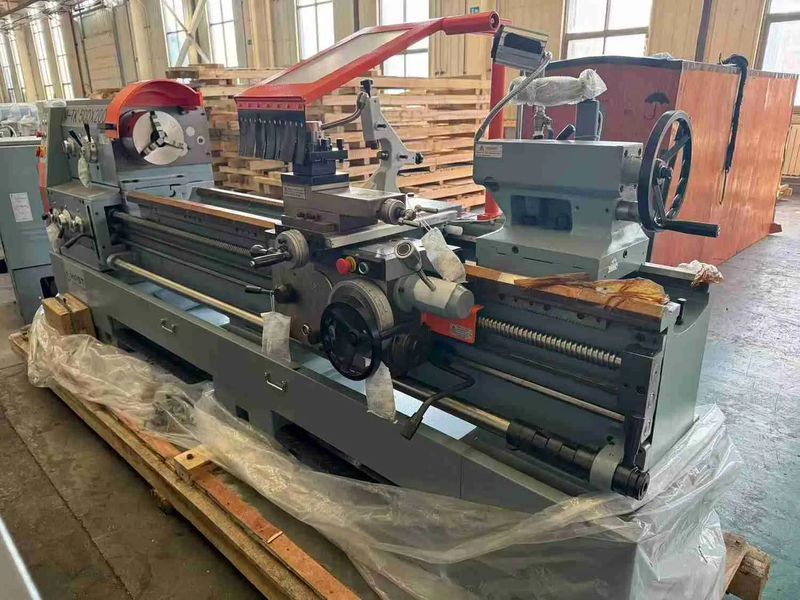

Universal Lathe Machine MAST METALLTECHNIK M-TK 500x2000
MAST METALLTECHNIK M-TK 500x2000 is a heavy-duty universal metal lathe designed for machining long, large and heavy workpieces. The machine combines a rigid cast iron structure, 2000 mm distance between centers, 82 mm spindle bore, powerful 7.5 kW motor and a wide spindle speed range.
The lathe is suitable for external and internal turning, facing, drilling, boring, reaming and threading operations. It supports metric, inch, module and DP threads, making it an efficient solution for repair shops, machine-building plants and industrial metalworking applications.
500 mmSwing over bed
2000 mmDistance between centers
82 mmSpindle bore
7.5 kWMain motor power
Main Advantages
- Machining of long and heavy workpieces: 2000 mm between centers allows efficient turning of shafts, tubes and oversized components.
- Massive cast iron bed: machine weight of 2500 kg and 390 mm bed width provide high rigidity and vibration reduction.
- Large spindle bore: 82 mm spindle hole enables machining of pipes, bars and long stock material.
- Industrial spindle system: D1-8 spindle nose ensures reliable torque transmission and stable operation under heavy loads.
- 24 spindle speeds: wide speed range from 9 to 1600 rpm for roughing and finishing operations.
- Multiple thread types: support for metric, inch, module and DP threads increases versatility.
Applications
The MAST METALLTECHNIK M-TK 500x2000 universal lathe is suitable for machine-building plants, repair workshops, industrial production facilities, energy sector enterprises, agricultural machinery repair and general metalworking shops.
The machine is designed for machining shafts, axles, bushings, flanges, tubular parts and other long or heavy workpieces requiring high rigidity and stable cutting performance.

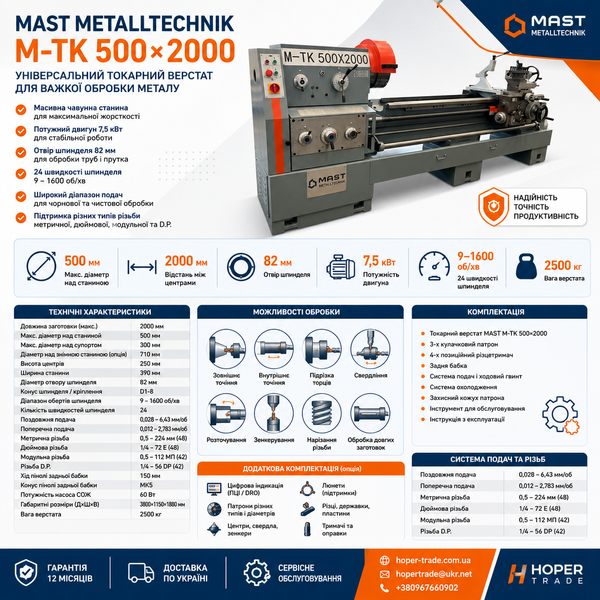

Technical Specifications
| Parameter |
Value |
| Model |
MAST METALLTECHNIK M-TK 500x2000 |
| Machine Type |
Universal metal lathe |
| Swing over bed |
500 mm |
| Swing over carriage |
300 mm |
| Swing over gap |
710 mm (optional) |
| Distance between centers |
2000 mm |
| Spindle bore |
82 mm |
| Spindle nose |
D1-8 |
| Number of spindle speeds |
24 |
| Spindle speed range |
9-1600 rpm |
| Main motor power |
7.5 kW |
| Longitudinal feed |
0.028-6.43 mm/rev |
| Cross feed |
0.012-2.783 mm/rev |
| Metric threads |
0.5-224 mm (48) |
| Inch threads |
1/4-72 TPI (48) |
| Module threads |
0.5-112 MP (42) |
| DP threads |
1/4-56 DP (42) |
| Bed width |
390 mm |
| Cross slide travel |
145 mm |
| Compound slide travel |
320 mm |
| Maximum tool size |
25x25 mm |
| Tailstock taper |
MT5 |
| Tailstock quill diameter |
75 mm |
| Tailstock quill travel |
150 mm |
| Coolant pump motor power |
60 W |
| Dimensions |
3800x1150x1880 mm |
| Weight |
2500 kg |
Key Functional Features
Rigid spindle assembly. The industrial spindle system ensures stable rotation and high machining accuracy even under heavy cutting loads.
Mechanical gearbox. Multi-speed transmission allows precise selection of cutting parameters for different materials and diameters.
Heavy-duty bed. The cast iron bed minimizes vibration and improves surface finish quality.
Wide feed range. Suitable for both roughing and finishing operations.
Thread cutting capabilities. Support for multiple thread standards increases machine versatility.
Standard Equipment
- Universal lathe machine MAST METALLTECHNIK M-TK 500x2000
- Tailstock with MT5 taper
- Feed shaft and lead screw system
- Coolant pump system
- Technical documentation
Equipment package may vary depending on delivery configuration. Please уточняйте комплектацию у менеджеров Hoper Trade.
Optional Equipment and Consumables
- Lathe chucks of different diameters
- Steady rests and follow rests
- Tool holders and turning tools 25x25 mm
- Centers, drills, reamers and boring tools
- Coolant systems and cutting fluids
- Additional tooling for shaft and tube machining
Frequently Asked Questions
Why is a large spindle bore important?
The 82 mm spindle bore allows long bars and tubes to pass through the spindle, improving productivity and flexibility.
Why is bed rigidity important?
A rigid and wide bed reduces vibration and deformation, improving machining accuracy and surface finish quality.
What workpieces can this machine handle?
The machine is suitable for shafts, bushings, axles, flanges, tubular parts and other long heavy workpieces.
Why is support for different thread types useful?
It allows machining of components according to different international standards and increases versatility in repair and manufacturing operations.
