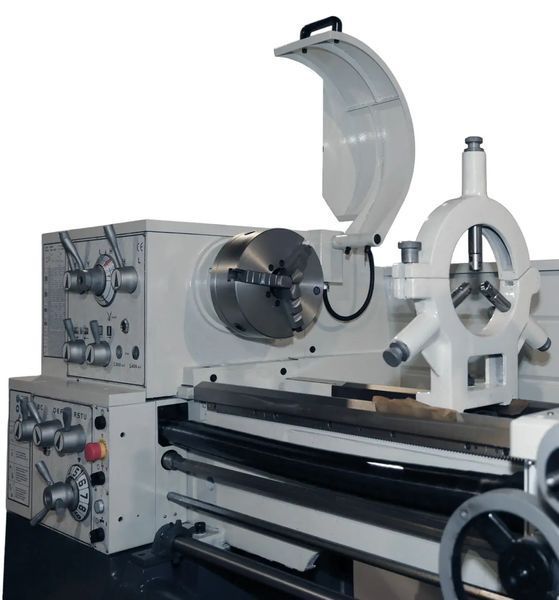

Universal Lathe MAST 460x1500
The MAST 460x1500 is a heavy-duty industrial universal metal lathe designed for external and internal turning, threading, drilling, facing, boring, and machining long shafts and pipes. With 1500 mm between centers, 460 mm swing over bed, and an 80 mm spindle bore, this machine is ideal for both repair workshops and industrial production facilities.
Main Advantages of the MAST 460x1500
Heavy Cast Iron Bed
The rigid cast iron construction with a total machine weight of 1970 kg effectively absorbs vibrations and ensures stable machining accuracy.
80 mm Spindle Bore
Allows efficient machining of long shafts, tubes, and bars without additional preparation.
Powerful 5.5 kW Motor
The industrial-grade motor with gearbox transmission provides high torque even at low spindle speeds.
24 Spindle Speeds
Spindle speed range from 25 to 2000 RPM allows precise adjustment for different materials and machining tasks.
Hardened Guideways
Induction hardened and ground guideways provide long-term durability and stable accuracy.

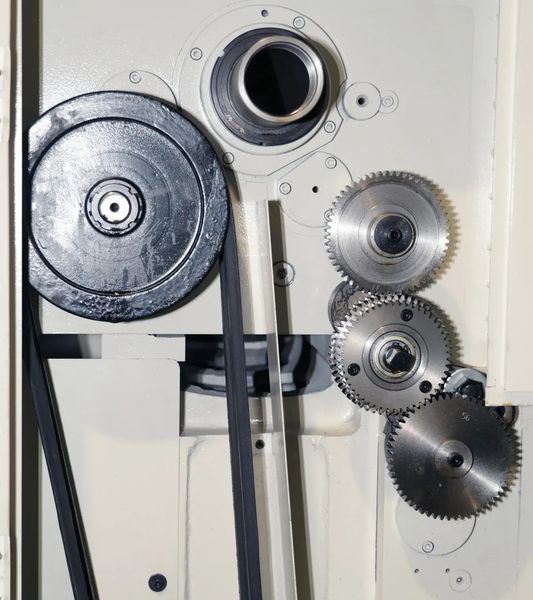

Professional Feed Gearbox
Separate feed shaft and lead screw ensure precise threading and extended service life.
Applications
The MAST 460x1500 universal metal lathe is widely used in machine-building plants, repair workshops, metalworking factories, tool rooms, and industrial service companies.
- Turning shafts and axles
- Machining pipes and bars
- Metric and inch threading
- Boring operations
- Batch production
- Repair and restoration work
Technical Specifications
| Parameter |
Value |
| Model |
MAST 460x1500 |
| Machine Type |
Universal Metal Lathe |
| Power Supply |
400 V |
| Main Motor Power |
5.5 kW |
| Coolant Pump Power |
0.1 kW |
| Distance Between Centers |
1500 mm |
| Max Swing Over Bed |
460 mm |
| Max Swing Over Cross Slide |
270 mm |
| Max Swing in Gap |
690 mm |
| Bed Width |
300 mm |
| Spindle Bore |
80 mm |
| Spindle Taper |
MK6 |
| Spindle Mount |
D1-6 CAMLOCK |
| Spindle Speed Range |
25-2000 RPM |
| Number of Speeds |
24 |
| Longitudinal Feed |
0.031-1.7 mm/rev |
| Cross Feed |
0.014-0.784 mm/rev |
| Maximum Tool Size |
25x25 mm |
| Tailstock Taper |
MK4 |
| Tailstock Quill Travel |
130 mm |
| Tailstock Quill Diameter |
60 mm |
| Metric Thread Range |
0.2-14 mm |
| Inch Thread Range |
2-112 TPI |
| Dimensions |
2750x1080x1370 mm |
| Weight |
1970 kg |
Standard Equipment
- 3-jaw chuck 200 mm
- 4-jaw chuck 200 mm
- Steady rest
- Follow rest
- Two dead centers
- Face plate
- LED work light
- Coolant system
- Toolbox
- Machine accuracy inspection certificate
Optional Equipment
- Quick-change tool post
- Large diameter chucks
- Turning tools and holders
- Digital readout systems (DRO)
- Live centers
- Special-purpose chucks
- Roller steady rests
- Industrial coolant systems
Why Buy the MAST 460x1500 from Hoper Trade?
- Official equipment supplier
- Warranty and post-warranty service
- Technical консультація and machine selection support
- Spare parts and tooling supply
- Delivery across Ukraine
