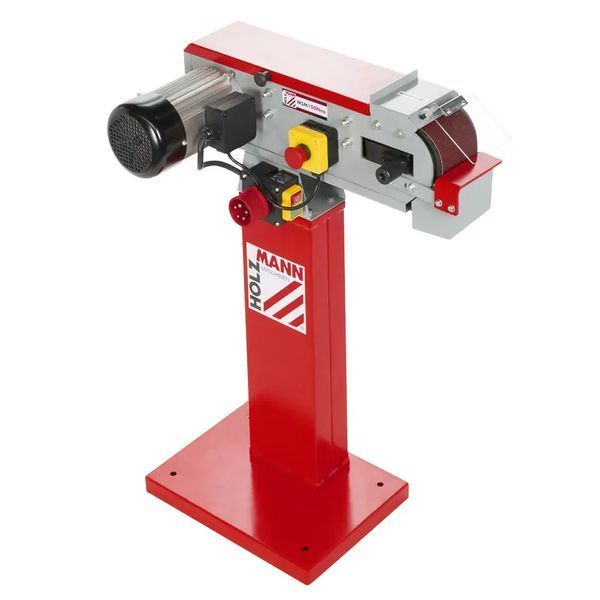

The Holzmann MSM 100L is a high-performance industrial machine designed for heavy-duty use in metalworking shops, garages, and factories. Utilizing a closed abrasive belt sized 100x1220 mm, this grinder ensures rapid material removal, precise weld cleaning, and workpiece preparation for subsequent polishing or painting.
Key Advantages
High Productivity
The 1.5 kW induction motor and a constant belt speed of 19 m/s allow for efficient processing even with hard steel alloys.
Versatile Work Zones

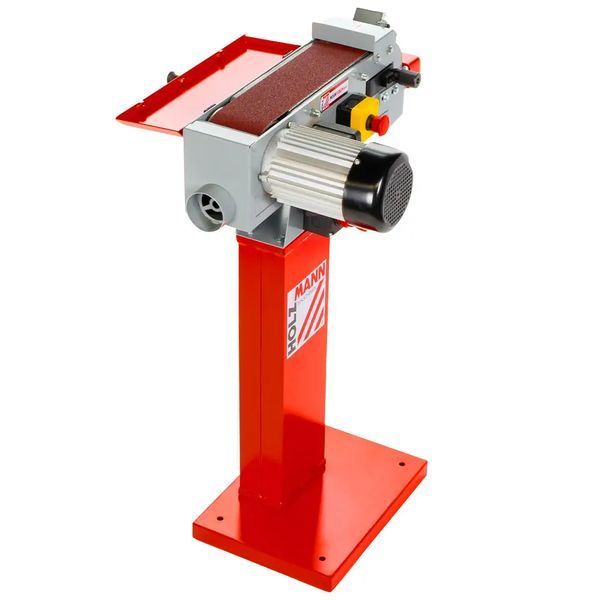

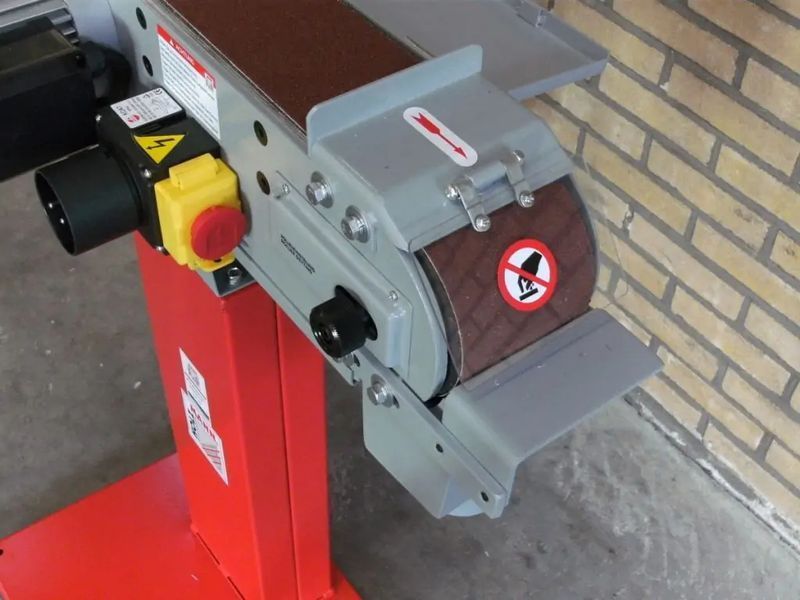

The machine features two work zones: a contact roller for radius grinding and an upper horizontal surface for processing long flat workpieces.
Abrasive Durability
A graphite lining on the support plate minimizes friction, preventing belt overheating and extending its service life by 30-40%.
Quick Setup
The quick-clamping system allows for belt replacement in seconds without the need for additional tools.
Technical Specifications
| Parameter |
Value |
| Voltage |
230 V / 50 Hz |
| Motor Power (S1) |
1.5 kW |
| Sanding Belt Dimensions |
100 x 1220 mm |
| Belt Speed |
19 m/s |
| Drive Roller Diameter |
ø127 x 100 mm |
| Sanding Table Dimensions |
280 x 100 mm |
| Sound Pressure Level |
89.5 dB(A) |
| Overall Dimensions |
655 x 385 x 900 mm |
| Weight (Net/Gross) |
39 / 42 kg |
Construction Features

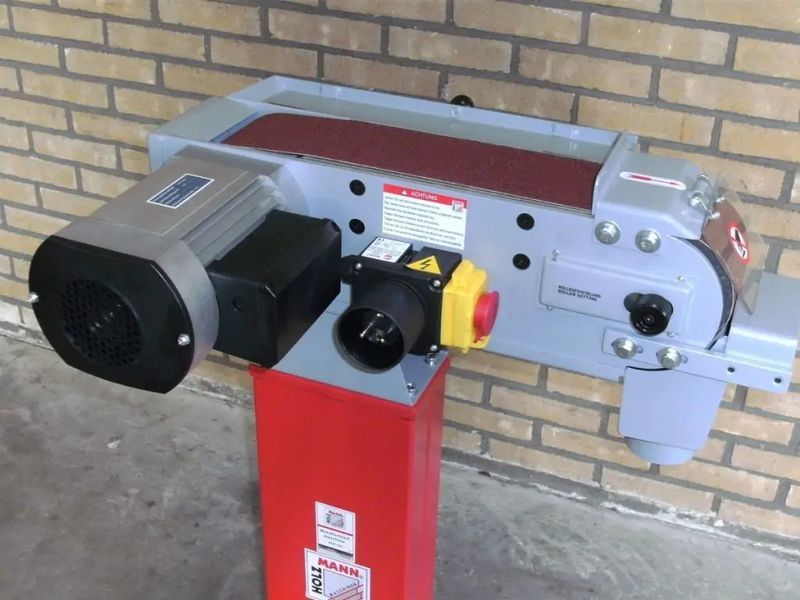

The Holzmann MSM 100L is built on a rigid steel frame with a wide base, ensuring vibration-free operation. Rubber-coated pulley surfaces provide ideal grip with the belt, preventing slippage under load. A specialized screw mechanism allows for precise belt centering, maintaining stable contact geometry.
Consumables Parameters
The machine uses endless (closed) abrasive belts sized 100x1220 mm. We recommend choosing the abrasive type based on the material:
- Zirconia Alumina (Zir): For heavy grinding of stainless steel and metals.
- Ceramic Grain: For maximum productivity and working with heat-resistant steels.
- Aluminum Oxide: For universal grinding of carbon steels and non-ferrous metals.
Package Contents
- Holzmann MSM 100L machine assembly.
- Abrasive belt (pre-installed).
- Eye protection shield.
- Support plate with graphite coating.
- Operating manual.
- Warranty card (12 months).
Frequently Asked Questions (FAQ)
Why is 19 m/s the optimal speed?
This speed provides a perfect balance between fast material removal and preventing thermal damage to the metal structure.
Can the machine be used for woodworking?
Yes, provided that appropriate belts are used and a dust extraction system is connected, as wood dust is flammable when in contact with metal sparks.
What is the significance of the 1220 mm belt length?
A longer belt heats up more slowly and has a significantly higher service life compared to shorter hobby-grade alternatives.
