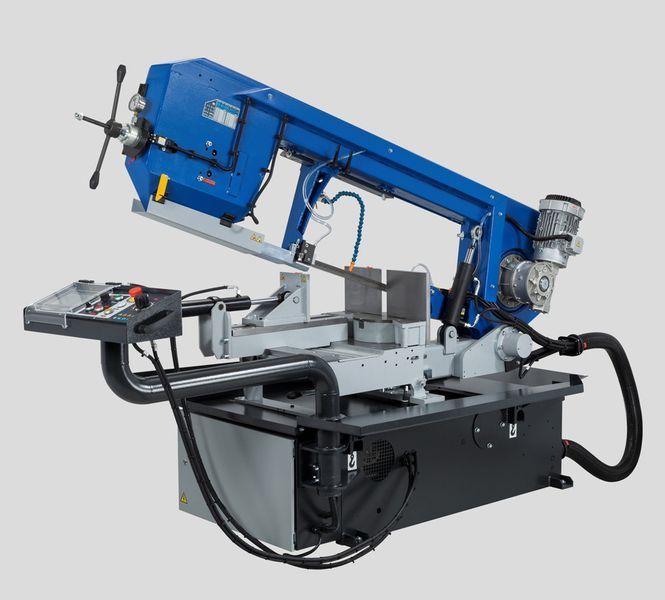

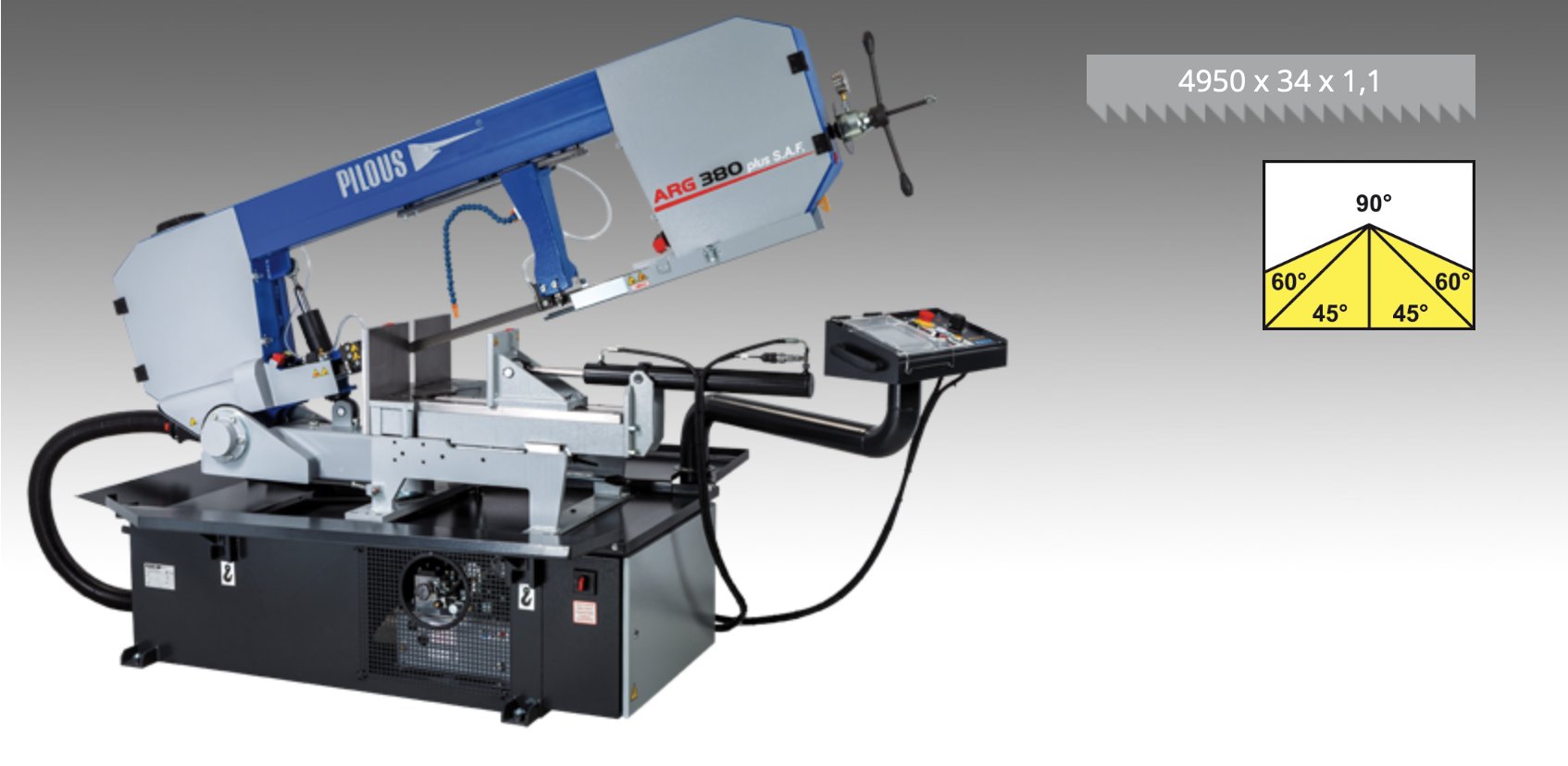

Band Saw Pilous ARG 380 plus S.A.F. — Industrial Power and Unrivaled Precision

Introducing the Pilous ARG 380 plus S.A.F. – a modern industrial band saw designed for serial cutting of workpieces with very large solid sections, including angle cutting. Its contemporary concept of a massive frame and updated unique design ensure exceptional rigidity and cutting performance.

This rigid industrial band saw is suitable for use in any industrial production environment where the processing of large workpieces is required. The band blade, measuring 34x1.1х4950 mm, allows for precise cutting of a wide range of materials, including stainless and tool steels.

Key Advantages and Innovations:

• Maximum Productivity for Large Workpieces: The modern concept of the massive frame allows for serial cutting of workpieces with very large solid sections, including at an angle.
• Wide Angle Cutting Range: The clamping mechanism design allows for sawing at angles ranging from -60° to 60°, and also in the reverse direction up to +60°, making it exceptionally flexible for complex tasks.
• Full Semi-Automatic Cycle: The machine is equipped with a high-performance hydraulic unit. The complete cutting cycle is initiated by pressing a single button – material clamping occurs, blade rotation and coolant supply are activated, cutting begins, after the cut is finished, blade rotation and coolant supply are stopped, the frame lifts to the initial set position, and the vise unclamps. This ensures maximum productivity, especially when cutting large series and difficult-to-machine solid section materials.
• Precision and Speed Control: Frequency control of the blade rotation drive allows for stepless adjustment of cutting speed from 15 to 90 m/min. This significantly increases cutting precision and multiplies the durability of the band saw blade. In manual mode, all machine functions can be controlled separately.
• Unrivaled Stability and Durability:
  • To ensure maximum machine rigidity and precise operation, the swiveling frame is mounted on a swivel table with massive bearing supports featuring radial-thrust roller bearings, with precise factory pre-tension adjustment.
  • The saw frame rotates together with the swivel base, which eliminates the possibility of cutting into the table surface. To facilitate turning effort, the structure is mounted on a thrust bearing.
  • Massive quick-clamping vises for simple, fast, and reliable workpiece clamping.
  • The use of large diameter pulleys and three-sided carbide blade guides in the machine significantly increases tool life and cutting accuracy.
  • The reliable design of machine components and the use of proven parts guarantee **long-term trouble-free operation**.
  • Silent drive with a maintenance-free worm gear motor.
• Optimized Coolant System: High-performance coolant pump and independent flow regulation on both guides. The coolant tank and pump are located inside the machine base.
• Convenience and Safety:
  • The machine is easy to use due to the ergonomic placement of control elements (electrical and hydraulic) on the machine base.
  • Blade tension control and emergency shutdown of the machine in case of blade breakage.
  • Workpiece stop with scale, 500 mm long, included in the standard package.
  • The machine is equipped with a powerful brush with a separate drive for removing chips from the saw teeth.

Cutting Characteristics (mm):

Material Type	90°	-45°	+45°	+/- 60°
	380	380	380	270
	340	340	340	255
	510 x 340	350 x 340	350 x 340	235 x 340

Technical Specifications:

Standard Equipment:

• Band Saw Pilous ARG 380 plus S.A.F.
• Band blade 34 x 1.1 mm.
• Automatic hydraulic cutting cycle system.
• Integrated frequency converter for stepless blade speed regulation.
• Coolant supply system with pump and internal tank.
• Removable chip container.
• Powerful brush with separate drive for removing chips from saw teeth.
• Workpiece stop with scale, 500 mm long.
• Full set of documentation and operating manual.

Optional Equipment (Extras):

Expand the functionality of your machine for even greater convenience and productivity:

• Hydraulic Clamp: Used for secure clamping of a bundle of workpieces from above. Automatically activates synchronously with the main vises.
• Oil Mist Lubrication: Sprays oil mist onto the cutting edge of the blade. Replaces traditional coolant, especially when cutting profile sections where significant coolant loss occurs. Organic oils can be used.
• Laser Pointer: Projects the cutting line onto the workpiece, reducing setup time and simplifying workpiece positioning.
• Workpiece Stop DR 380,400,500: Stop with scale for setting the size of cut workpieces up to 500 mm long.
• Chip Removal Brush (with independent drive): Steel brush with independent drive. Removes chips from the blade during machine operation.
• Angle Indication LG 380/400/500: Digital scanning of the set cutting angle provides quick and precise adjustment. The value is displayed with 0.1 degree accuracy on the central touchscreen. This option is recommended for frequent angle cutting.
• Cutting Force Regulator AG: One-sided hydraulically controlled regulation of blade feed force depending on material machinability during cutting. Reduces cutting time and increases tool life.
• Hydraulic Blade Tension with Pressure Indicator HD: Provides convenient tensioning of the band blade with a manual hydraulic pump to the required value according to the pressure gauge and its readings during machine use. Optimal blade tension is essential for increasing blade life and cutting precision.
• Chip Conveyor: Removes chips from the machine into a container during operation. Reduces time spent cleaning the machine, especially when cutting large series of solid materials where a large amount of chips is generated.
• Blade Tension Indicator: Allows for optimal tensioning of the band saw blade and monitoring tension during operation. Correct tension significantly increases tool life and processing accuracy.
• High-Pressure Gun: Designed for cleaning the machine's work area.
• Chip Collection Container (on wheels): Equipped with wheels and a tilting mechanism for convenient moving and unloading of chips.
• Magnetic Separator with Container: A stainless steel container with a galvanized, finely perforated separator for efficient chip collection. Easy to remove and clean.
• Halogen Lamp: Provides quality illumination of the cutting zone. Necessary in dimly lit production areas.

The Pilous ARG 380 plus S.A.F. — is an investment in your productivity, precision, and quality. Choose reliability and innovation for your production!

*Images may differ from the actual product due to ongoing improvements.
