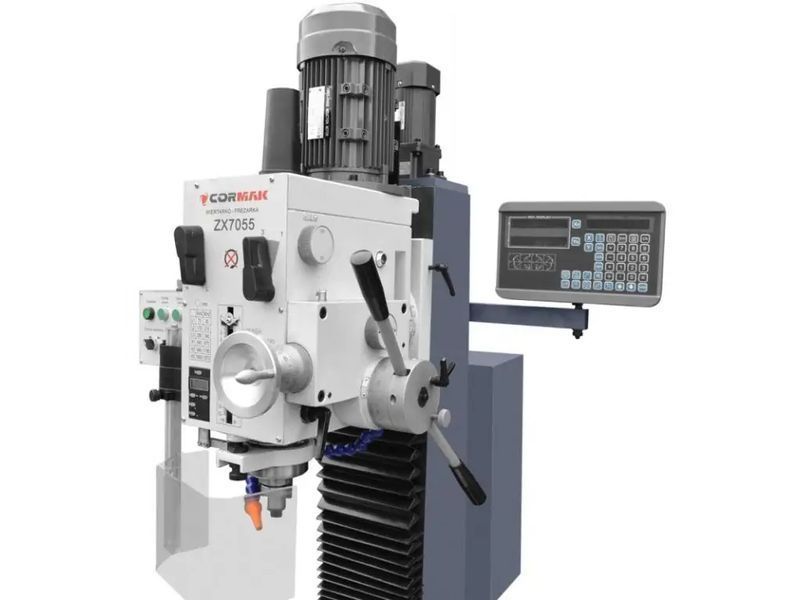

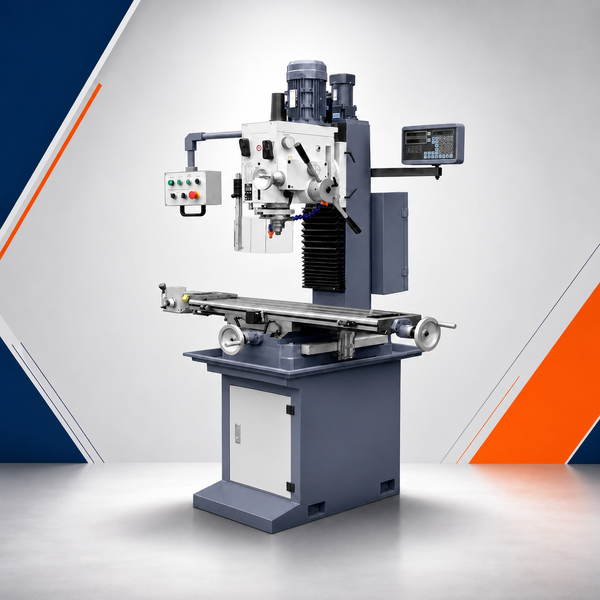

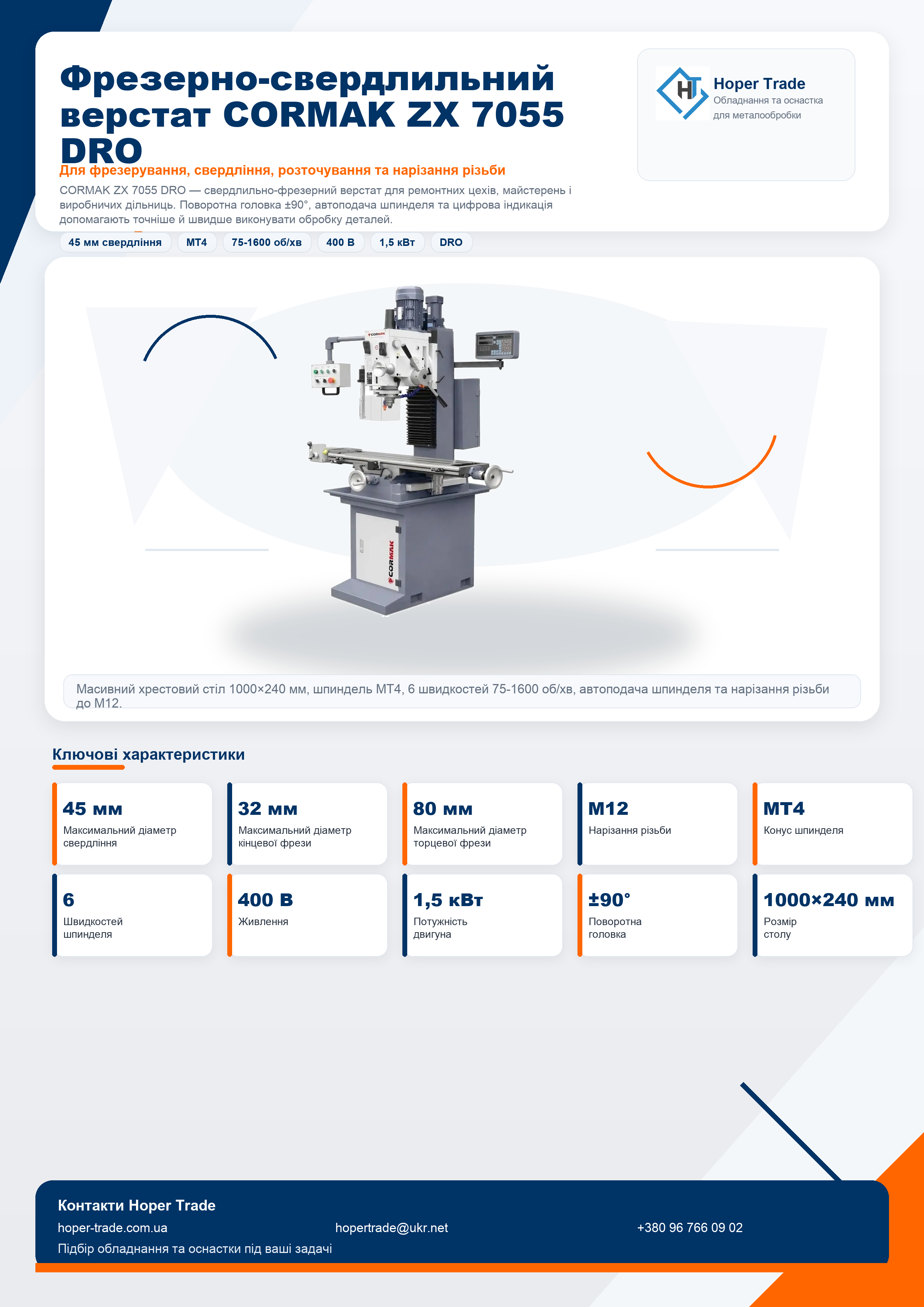

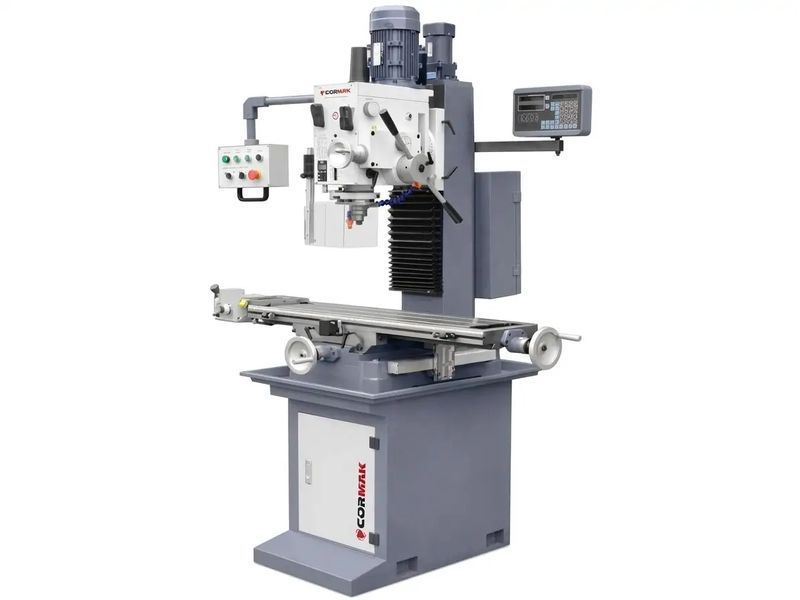

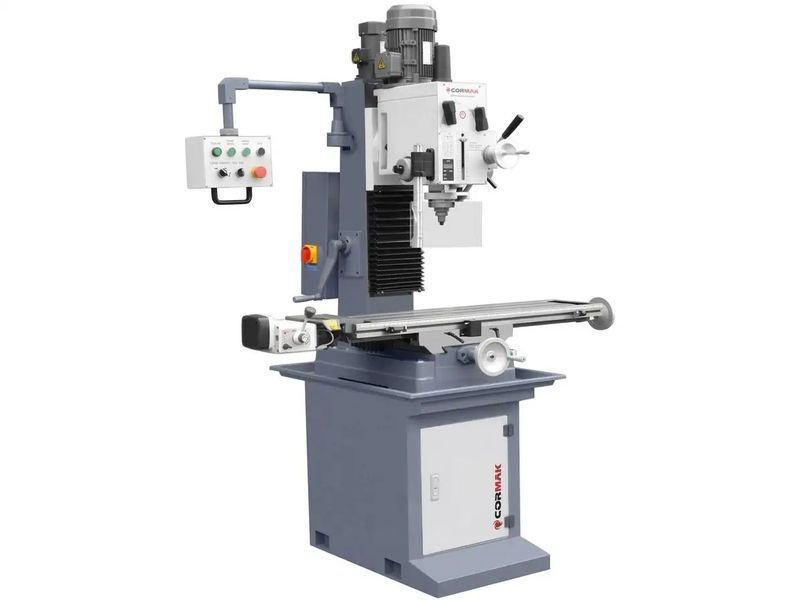

CORMAK ZX 7055 DRO Milling and Drilling Machine for Metal with 3-Axis DRO

The CORMAK ZX 7055 DRO milling and drilling machine is a universal metalworking solution for businesses, repair departments, and workshops that need multiple machining operations on one machine. It can drill, mill, bore, ream, and cut threads, making it suitable for manufacturing and finishing parts, tooling, housing components, and repair assemblies.

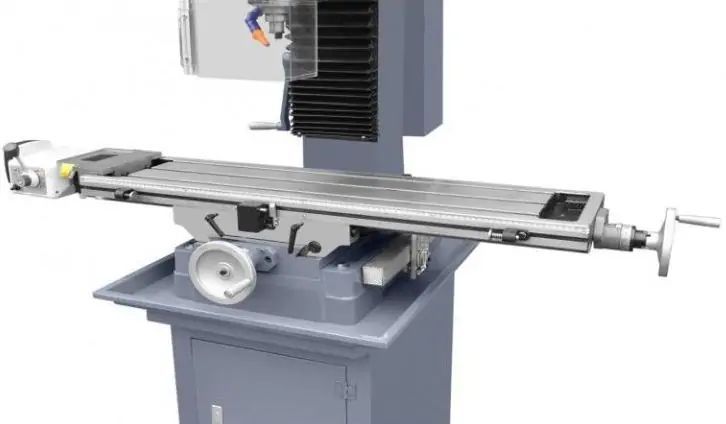

The machine features an MT4 spindle, 6 spindle speeds from 75 to 1600 rpm, reverse, and automatic 3-speed spindle feed. The ±90° swivel milling head, heavy-duty 1000 x 240 mm table, hardened dovetail guides, box column, cast iron base, and 3-axis digital readout provide rigidity, positioning accuracy, and convenient angular machining without resetting the workpiece.

• Drilling holes in steel, cast iron, non-ferrous metals, and alloys up to 45 mm in diameter.
• Milling slots, flat surfaces, steps, and seating areas with end mills up to 32 mm.
• Face milling flat surfaces with cutters up to 80 mm.
• Boring, reaming, and finishing holes for fits and assembled joints.
• Cutting metric threads up to M12 in repair and small-batch production environments.

• The MT4 spindle taper provides rigid tool holding and reliable torque transmission.

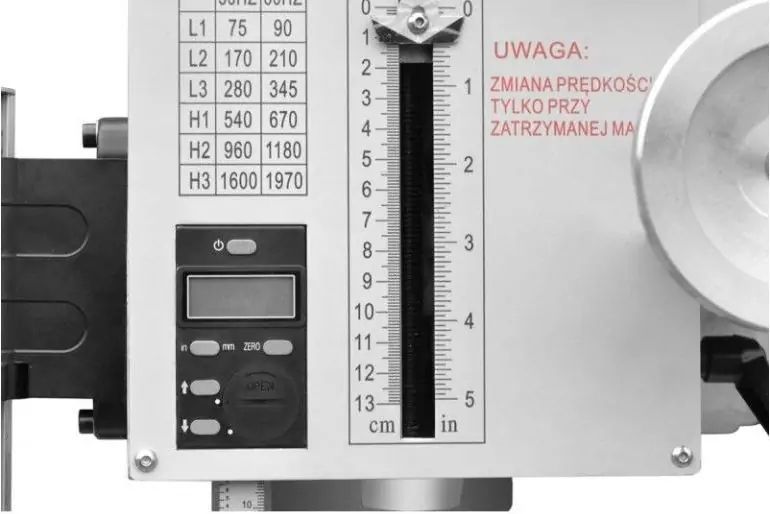

• The geared head with 6 spindle speeds supports different materials and tool diameters.

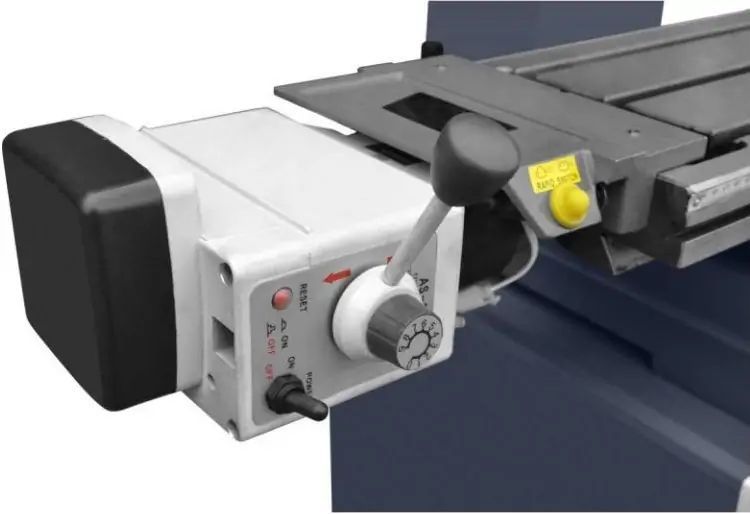

• Automatic spindle feed with three settings improves repeatability and reduces operator load.
• The ±90° swivel milling head allows angular machining without repositioning the part.
• Adjustable milling head height simplifies setup for workpieces of different sizes.
• Hardened and ground dovetail guides ensure accurate movement and high rigidity during milling operations.
• The box column and cast iron base with reinforcing ribs reduce vibration and improve stability under load.
• Ground gears contribute to quieter and smoother operation compared to roughly machined gearing.
• The coolant system helps maintain stable thermal conditions during extended machining cycles.

• For steel and cast iron, HSS or carbide end mills and face mills are recommended, selected to match cutting conditions and workpiece rigidity.
• For stainless steel, wear-resistant cutters with effective cooling are recommended, while aluminum and non-ferrous metals require tool geometry suited for softer alloys.
• For drilling and tapping, it is advisable to select drills, reamers, taps, MT4 arbors, collets, chucks, and reliable machine vises.
• For steel and stainless steel, water-miscible or semi-synthetic coolant is recommended; for non-ferrous metals, use a light emulsion without aggressive additives.
• To maintain stable accuracy, regularly check backlash, spindle runout, table cleanliness, and use proper lubricants for guideways and lead screw assemblies according to the maintenance schedule.

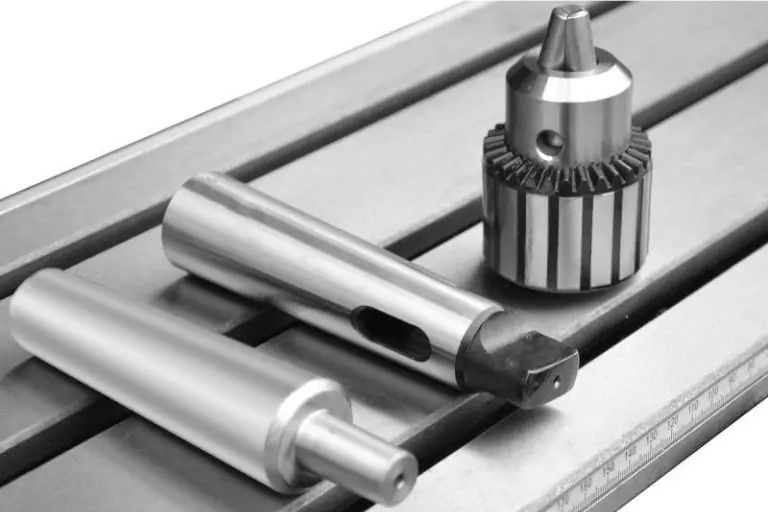

• 3-16 mm / B18 drill chuck
• MK4 / MK3 sleeve
• MK3 / MK2 sleeve

• Machine vise for milling operations
• Rotary table or dividing attachment
• MT4 collet chuck and collet set
• Arbors for face mills and end mills
• Sets of milling cutters, drills, reamers, taps, and measuring tools

• We help select a milling and drilling machine based on your actual tasks, materials, and workload.
• We supply not only machines, but also tooling, cutting tools, coolant, and consumables for commissioning.
• We provide guidance on installation, setup, machining parameters, and basic maintenance.
• We support both warranty and post-warranty service for the equipment.
• We arrange delivery across Ukraine for workshops, service centers, and production companies.

• Machine vises for milling machines
• MT4 arbors and collet chucks
• Sets of end mills and face mills for metalworking
• Coolant, guideway lubricants, and related process tooling
