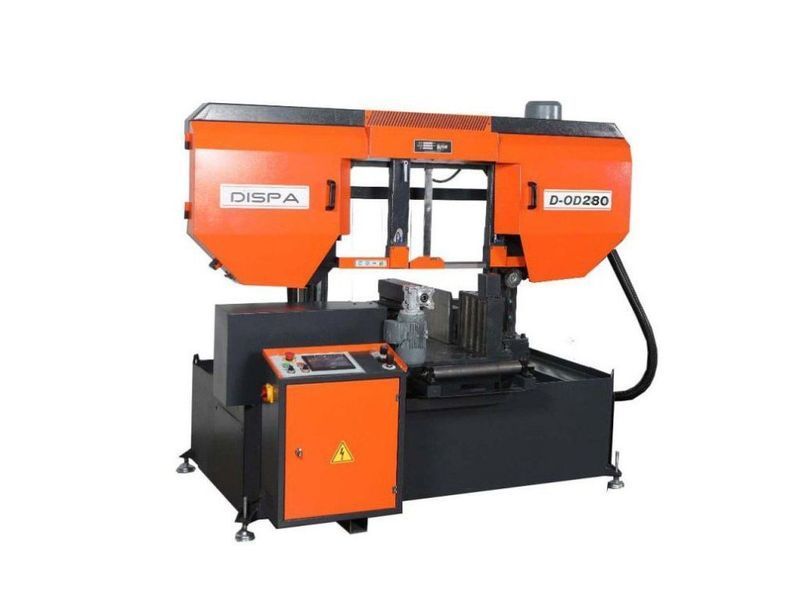

Automatic Two-Column Bandsaw Machine DISPA MAKINA D-OD 280
Introducing the Automatic Two-Column Bandsaw Machine DISPA MAKINA D-OD 280 — a compact, yet powerful and high-performance equipment designed for ultra-precise and efficient cutting of metal workpieces in serial production. This model is an ideal solution for businesses requiring a reliable and fully automated machine for processing medium-sized materials.
DISPA MAKINA is a leading Turkish manufacturer, known for over 30 years of experience in creating high-quality and innovative metalworking equipment. The brand's products meet the highest international standards of quality and technological advancement, confirmed by CE and ISO 9001 certificates.
Advantages and Features of DISPA MAKINA D-OD 280
The DISPA MAKINA D-OD 280 saw features a massive and rigid two-column construction, made from thick-walled metal. Its weight of 1000 kg testifies to its strength and stability, ensuring exceptional steadiness during cutting, minimizing vibrations, and guaranteeing high cutting precision.
- High Cutting Precision: Capable of cutting round parts up to 280 mm, square parts up to 280x280 mm, and rectangular parts up to 280x280 mm at a 90° angle. It also effectively cuts at a 45° angle: round up to 200 mm, square up to 200x200 mm, and rectangular up to 200x280 mm.
- Optimal Power: The main motor with a power of 2.2 kW provides sufficient power for efficient and stable cutting of various types of metals.
- Adaptive Blade Speed: Smooth adjustment of the cutting blade speed in the range of 0-90 m/min allows for precise parameter tuning to the specific material, optimizing the process and extending blade life.
- Efficient Chip Removal: The machine is equipped with a conveyor motor of 0.44 kW, indicating the presence of an integrated automatic chip removal system (screw type). This ensures a clean work area and uninterrupted operation.
- Reliable Hydraulic System: A hydraulic station with a volume of 30 L, a hydro-accumulator of 40 L, and a hydraulic pump motor of 0.75 kW ensure stable and powerful operation of all hydraulic functions, including workpiece clamping.

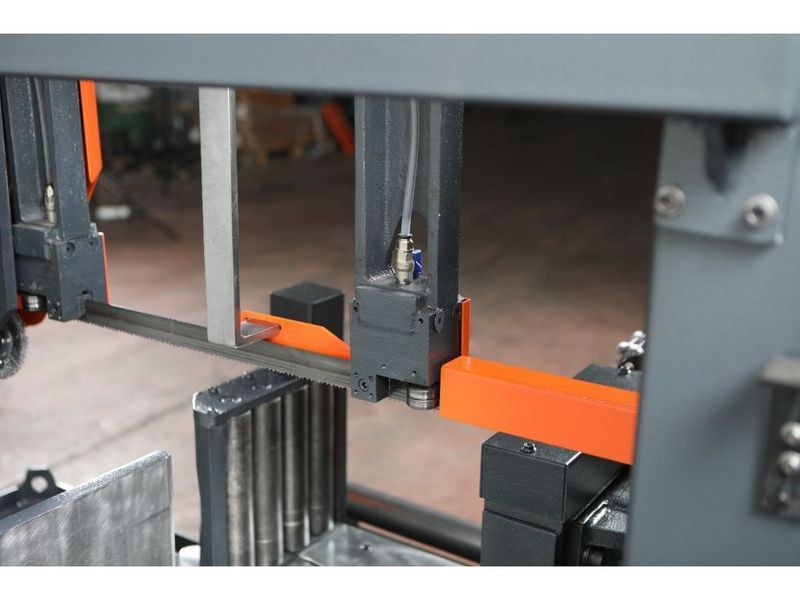

- Durable Blade: A cutting blade measuring 3660x27x0.9 mm is used, ensuring high efficiency and longevity of the cut.
- Coolant System (ZOR): The coolant system motor (0.09 kW) guarantees constant and efficient delivery of lubricating-cooling fluid (ZOR), which is critically important for maintaining optimal cutting blade temperature, increasing its lifespan, and improving cut quality.
- Compact Dimensions: With overall dimensions of 1200x1500x1000 mm, the saw easily integrates into small and medium-sized production facilities.
Technical Specifications of DISPA MAKINA D-OD 280
| Characteristic |
Value |
| Motor Power (main) |
2.2 kW |
| Weight |
1000 kg |
| Coolant System Motor Power (ZOR) |
0.09 kW |
| Cutting Blade Size |
3660x27x0.9 mm |
| Cutting Blade Speed |
0-90 m/min |
| Overall Dimensions |
1200x1500x1000 mm |
| Round Material Cut at 90° |
280 mm |
| Square Material Cut at 90° |
280x280 mm |
| Rectangular Material Cut at 90° |
280x280 mm |
| Round Material Cut at 45° |
200 mm |
| Square Material Cut at 45° |
200x200 mm |
| Rectangular Material Cut at 45° |
200x280 mm |
| Conveyor Motor Power |
0.44 kW |
| Hydraulic Station |
30 L |
| Hydro-accumulator |
40 L |
| Hydraulic Pump Motor Power |
0.75 kW |
Standard Equipment of Automatic Two-Column Bandsaw Machine DISPA MAKINA D-OD 280
The standard equipment of the machine includes all necessary elements for starting productive work and ensuring high efficiency:
- Main unit of the Automatic Two-Column Bandsaw Machine DISPA MAKINA D-OD 280

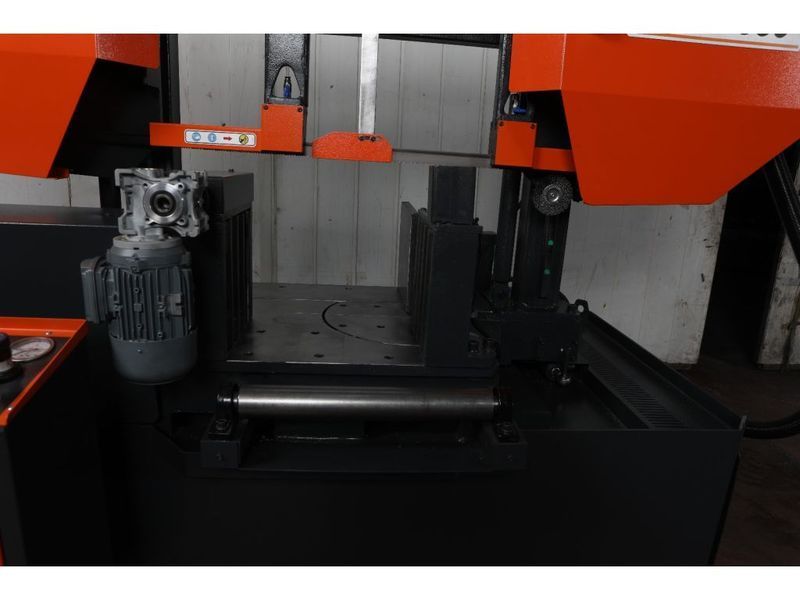

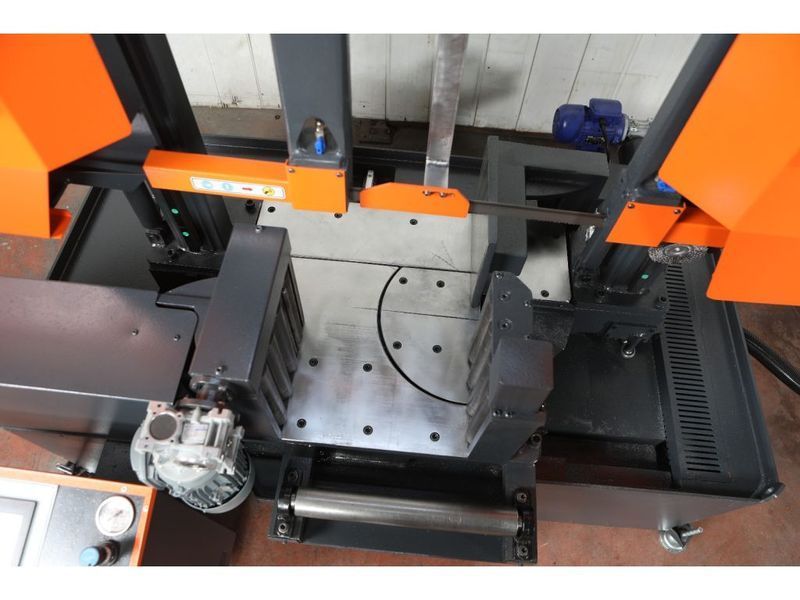

- Built-in hydraulic workpiece clamping system with pressure gauge
- Coolant (ZOR) supply system with motor and fluid tank
- Automatic chip conveyor (screw type)
- One high-quality cutting blade 3660x27x0.9 mm

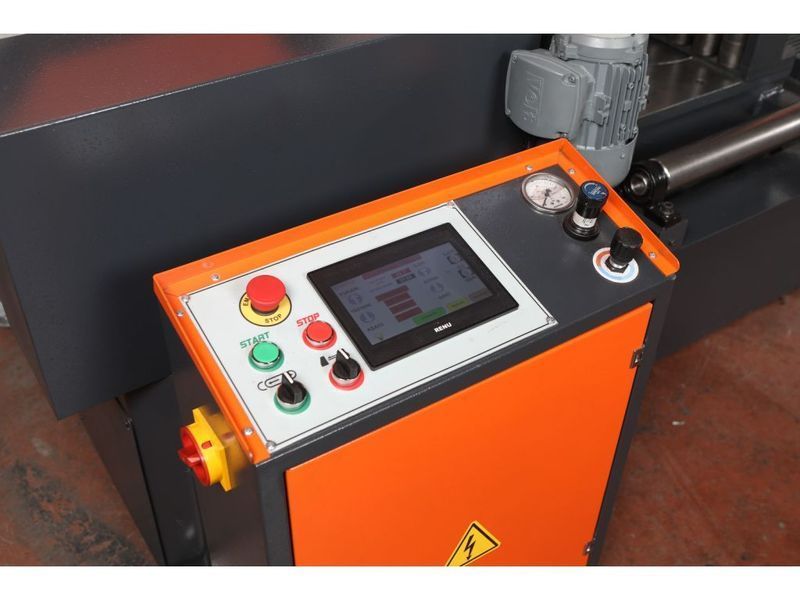

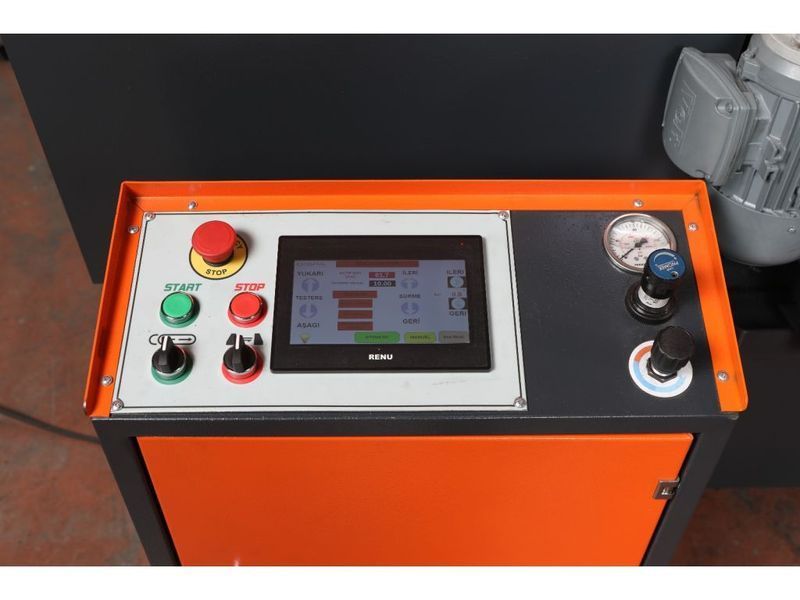

- Control panel with intuitive interface
- Set of tools for setup and maintenance
- User manual and technical documentation (in English)
- Warranty card
Optional Equipment and Services:
To expand the functional capabilities and optimize the operation of your enterprise, the following options and services are available:
- Additional bandsaw blades of various types and tooth pitches for specific materials (e.g., for carbide materials, non-ferrous metals, etc.)
- Roller conveyors (feeding and receiving) for working with long workpieces, which improves material logistics and work safety.
- Coolant (ZOR) filtration and cleaning systems to extend its service life, reduce costs, and ensure stable cutting quality.
- Laser cutting line pointer for even more precise and faster workpiece positioning, reducing setup time.
- Cutting pressure and feed speed control systems for process optimization and extended blade life, especially when working with heterogeneous materials.
- Professional operator training on-site or at our service center to maximize the machine's potential and enhance personnel qualifications.
- Extended warranty and regular maintenance agreements to ensure uninterrupted operation and minimize downtime risks.
- Supply of original spare parts and consumables directly from the manufacturer, guaranteeing compatibility and quality.
By choosing the Automatic Two-Column Bandsaw Machine DISPA MAKINA D-OD 280, you invest in a powerful, reliable, and high-precision tool that will become a key element of your production process. It will ensure impeccable cutting results and significantly increase the overall efficiency of your enterprise.
Interested in purchasing the DISPA MAKINA D-OD 280 – an effective solution for serial metal cutting? Contact our specialists for detailed consultation and an individual offer!
