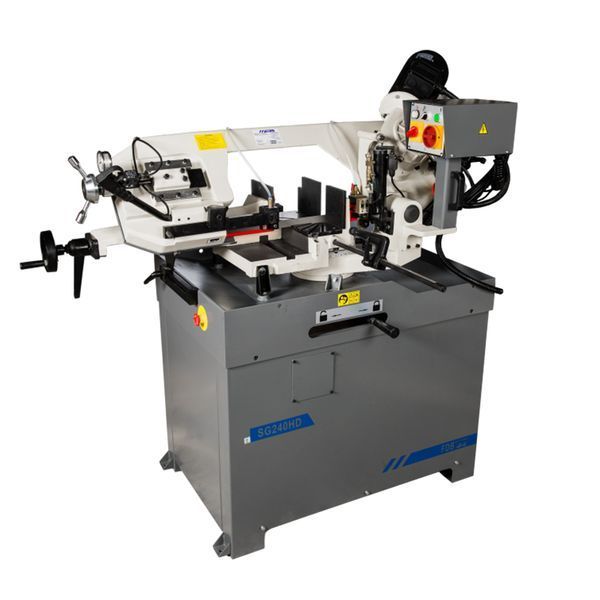

FDB Maschinen SG 240 HD Band Saw Machine — Professional Industrial Metal Cutting Equipment
The professional band saw machine FDB Maschinen SG 240 HD is high-reliability industrial equipment designed for precise cutting of hard steel, cast iron, and non-ferrous metals. Thanks to its robust construction and significant weight, this machine is suitable for both large industrial enterprises and small metalworking workshops.
The model is equipped with a powerful three-phase motor operating on a 380V network with two-speed settings, allowing effective processing of various metal materials. An automatic coolant supply system ensures clean and accurate cutting. Quick-clamping rotary vises allow fast fixation of workpieces at angles from 45° to 90°, ensuring high precision and user comfort.
The console design with hydraulic drive provides smooth operation and ease of use. Compliance with European safety standards makes the SG 240 HD an optimal choice for modern production facilities.
Main Advantages of FDB Maschinen SG 240 HD:
- Cast rigid frame for stability and durability;
- High cutting precision thanks to quality components and a rotary cutting head;
- Coolant delivery system directly to the cutting area extends blade life;
- Automatic end switch for operator safety;
- Rotary quick-clamping vises for convenient workpiece fixing;
- Quiet operation for comfortable working conditions.
Technical Specifications of FDB Maschinen SG 240 HD
| Parameter |
Unit |
Value |
| Model |
— |
SG 240 HD |
| Voltage (50 Hz) |
V |
380 |
| Motor Power |
W |
750/1500 |
| Coolant System Power |
W |
25 |
| Coolant Tank Capacity |
L |
15 |
| Cutting Angle Adjustment Method |
— |
Rotary cutting head |
| Max. diameter of round workpiece cut (90°) |
mm |
250 |
| Max. size of rectangular workpiece cut (90°) |
mm |
310×210 |
| Max. diameter of round workpiece cut (+45°) |
mm |
200 |
| Max. size of rectangular workpiece cut (+45°) |
mm |
200×140 |
| Max. diameter of round workpiece cut (-45°) |
mm |
150 |
| Max. size of rectangular workpiece cut (-45°) |
mm |
170×90 |
| Max. diameter of round workpiece cut (+60°) |
mm |
120 |
| Max. size of rectangular workpiece cut (+60°) |
mm |
120×95 |
| Blade Size |
mm |
2725×27×0.9 |
| Cutting Speed |
m/min |
36/72 |
| Worktable Height |
mm |
1010 |
| Overall Dimensions (L×W×H) |
mm |
1820×1220×1880 |
| Machine Weight |
kg |
330 |
| Blade Thickness |
mm |
0.9 |
| Blade Width |
mm |
27 |
| Cutting Angle |
degrees |
45/60/90 |
| Blade Length |
mm |
2725 |
| Frequency |
Hz |
50 |
| Country of Origin |
— |
China |
The FDB Maschinen SG 240 HD band saw machine is powerful and reliable equipment for efficient and precise cutting of metal blanks in industrial production.
